【Product Overview】

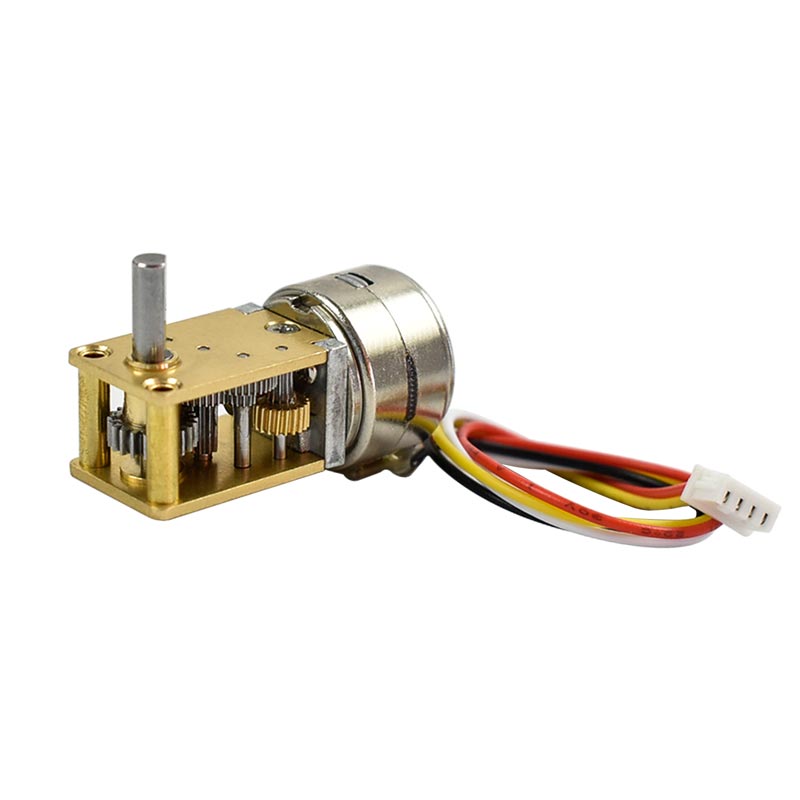

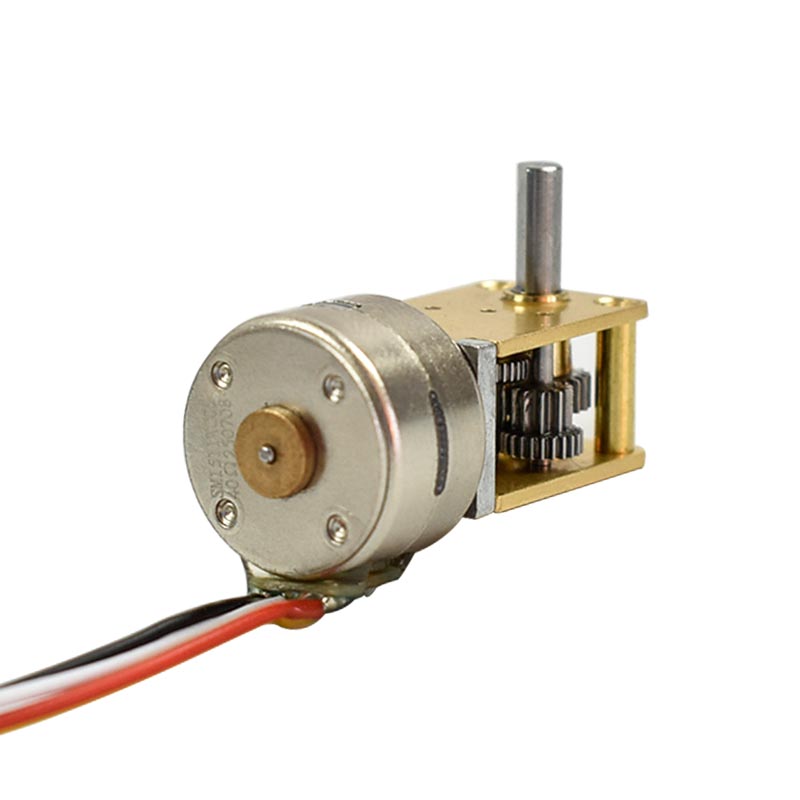

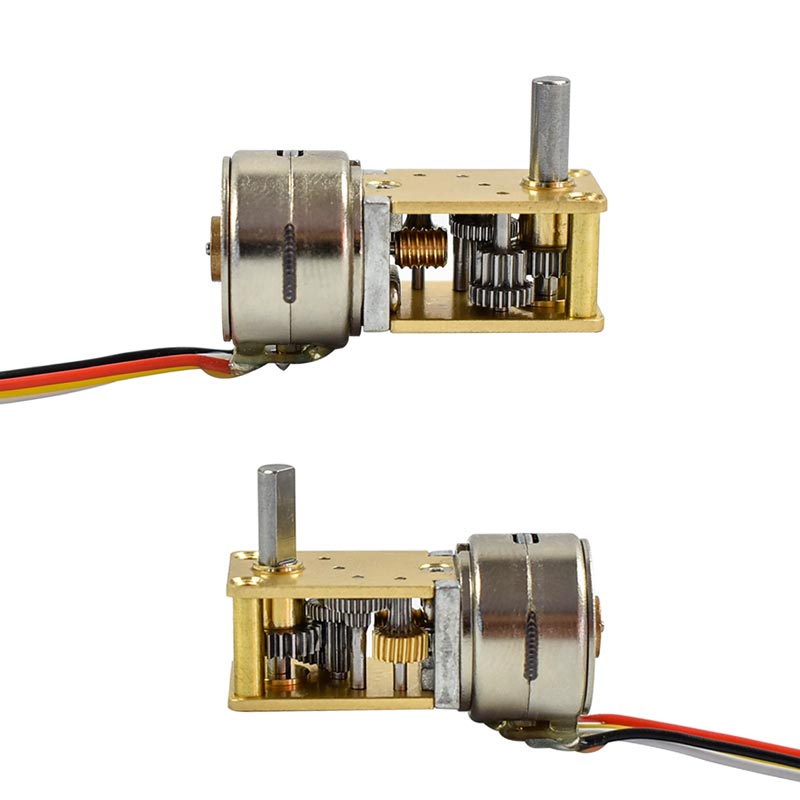

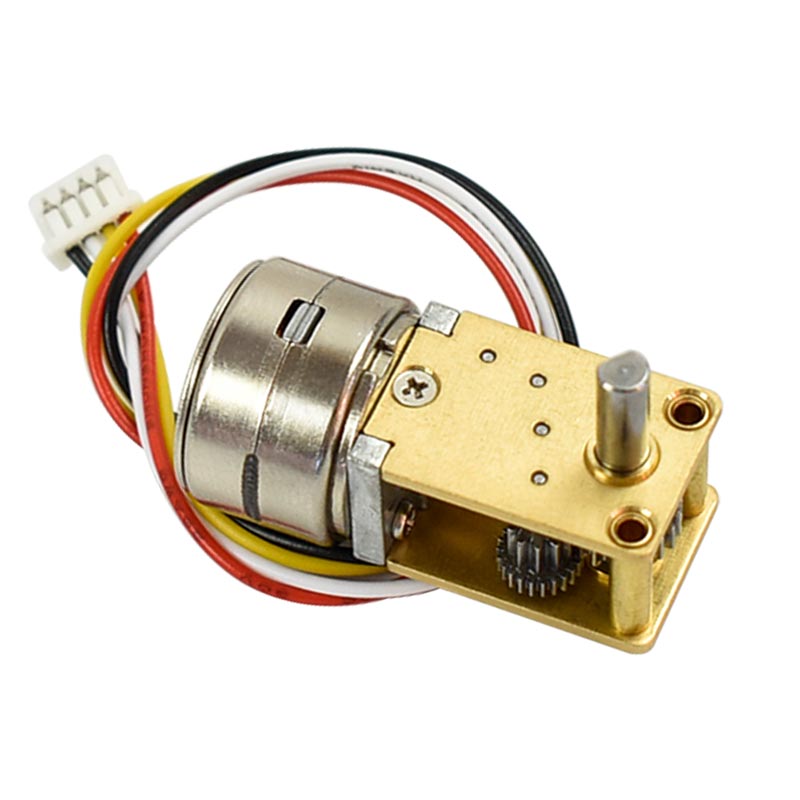

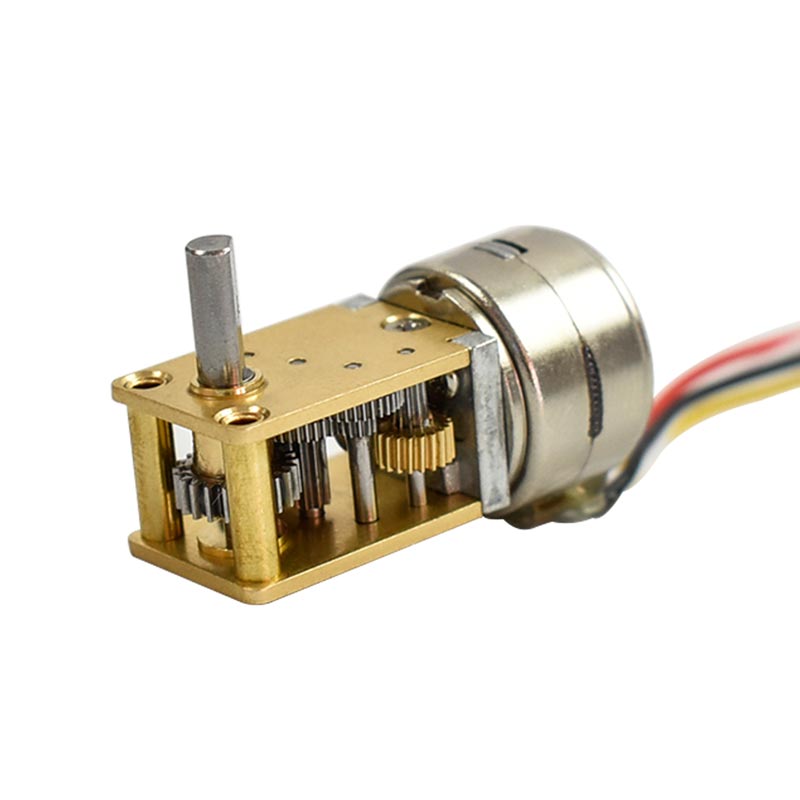

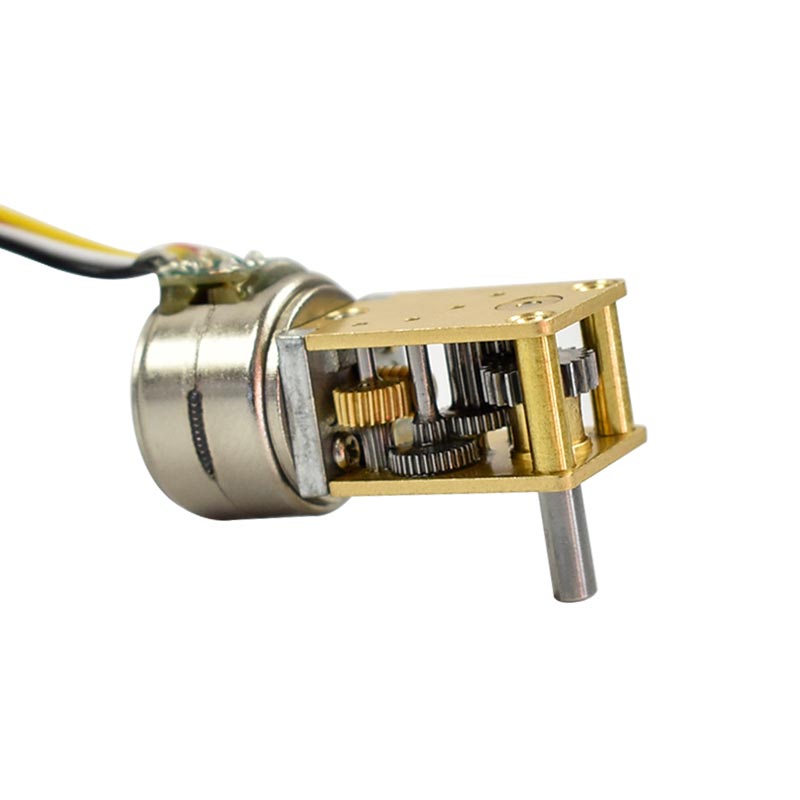

GM1218-15BY Mini Worm Gear Stepper Reduction Motor integrates a stepper motor and worm gearbox. It has power-off self-locking function to effectively prevent load back-driving. Adopting 2-phase 4-wire drive, it delivers stable and accurate positioning. The precision gear set ensures smooth transmission and low operating noise. Featuring compact structure and easy installation, it is suitable for various miniature automation and intelligent devices to meet precise angle control requirements of small equipment.
【Specifications】
Brand: CHANCS
Model: GM1218-15BY Stepper Reduction Motor

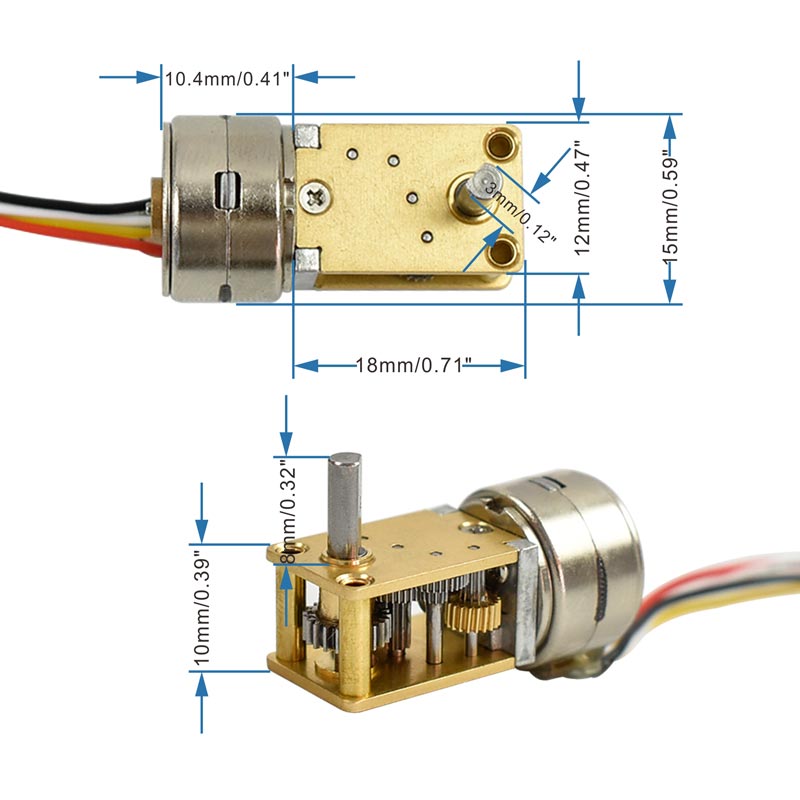

Size: 18×12×10.4 mm (0.709 in ×0.472 in ×0.409 in)
Shaft Diameter: 3 mm (0.118 in)
Shaft Length: 8 mm (0.315 in)
Voltage: DC 5V
Step Angle: 18°
Phase: 2 Phase 4 Wire
Motor Speed: 2400RPM
Gear Ratio: 1030:1
Resistance per Phase: 40Ω ±7%
Output Structure: Single D-shaft
【Application Scenarios】
Miniature automation devices, smart home appliances, small pan-tilts, precision testing instruments, mini electric control valves, etc.
【Package Contents】
1 x Motor
【Precautions】
1. Do not operate at maximum torque, as this may cause the gears to seize.
2. Dimensions may vary slightly; please confirm before placing an order!!
3. We can customize motors according to your needs; please specify the voltage and speed.
【Warranty】
Lifetime technical support! Feel free to share your usage feedback with us anytime.
1-year warranty with free replacement.
