This series return pump is designed specifically for aquarium tanks and is equipped with bottom suction function. The unique 9-slot 6-pole stator motor greatly improves the energy efficiency of the submersible pump. Provide high flow rates of up to 15,000 LPH (more than 3,900GPH) and a lift of 8.5 meters (27 feet).
γProduct Featuresγ
- 24V DC, NO electricity shock, safety and reliability
- Wide rang voltage input,high-quality power adapter, suit for 110-220V AC
- 10-Speed flow controllable,variable frequency technology,more energy saving
- True sine wave technology, large flow and ultra quiet
- 9-slot 6-pole stator motor, more powerful and durable
- Amphibious design, suit for submersible and inline running
- Suit for freshwater and saltwater
- Large flow, high lift and long-distance pumping
- Ceramic rotary shaft, low resistance, more durable

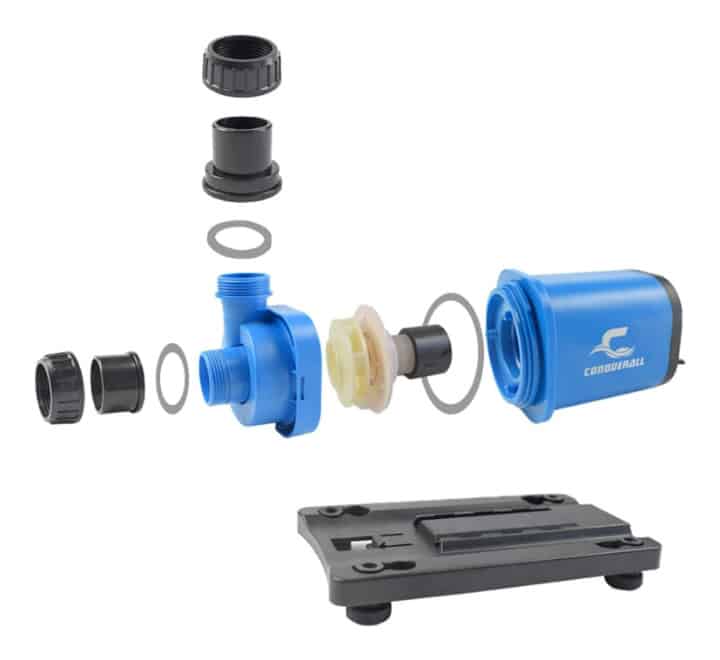

- Tool-less disassemble, easy cleaning
- Wave making mode, satisfy different size of fish tank
- Soft star,power off memory
γSpecificationγ
Model : DC Pump
Power: 20W,30W,40W,65W,80W,90W
Max Flow Rate: 1180GPH,1580GPH ,2110GPH,2640GPH,3170GPH,3960GPH
Max lift head: 13.0FT,16.0FT,16.5FT,22.5FT,24.5FT,27.5FT
Output Voltage: DC 24V
Pump dimension: 168*82*118mm (6.6*3.2*4.6in), 205*82*125mm (8.0*3.2*4.9in)
γApplicationγ

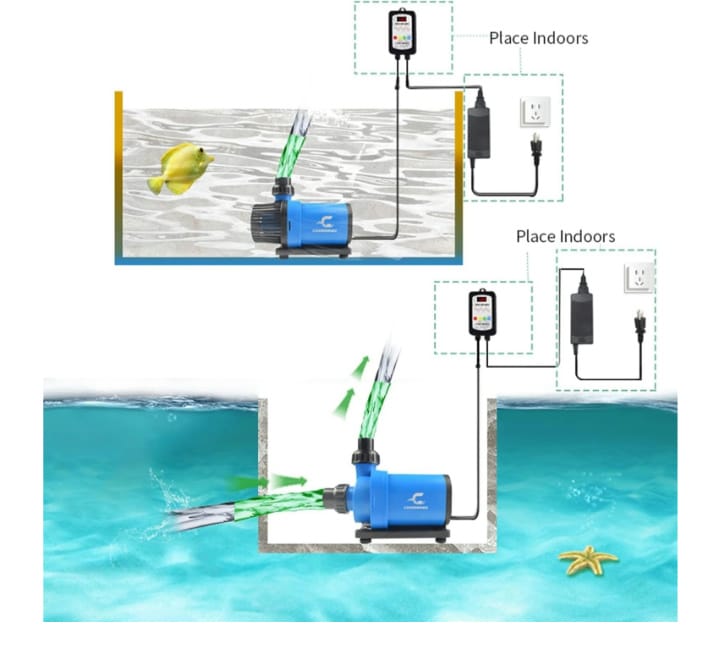

The pump can be used either as a submersible pump or as an inline pump; it is perfect for a variety of applications in fish ponds, aquariums tanks, fountains, waterfalls, fish farm and aquaculture systems.

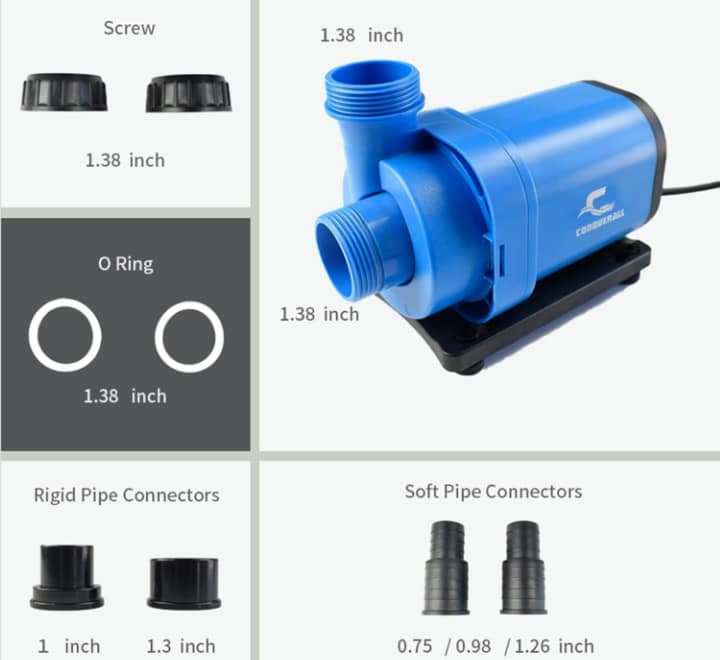

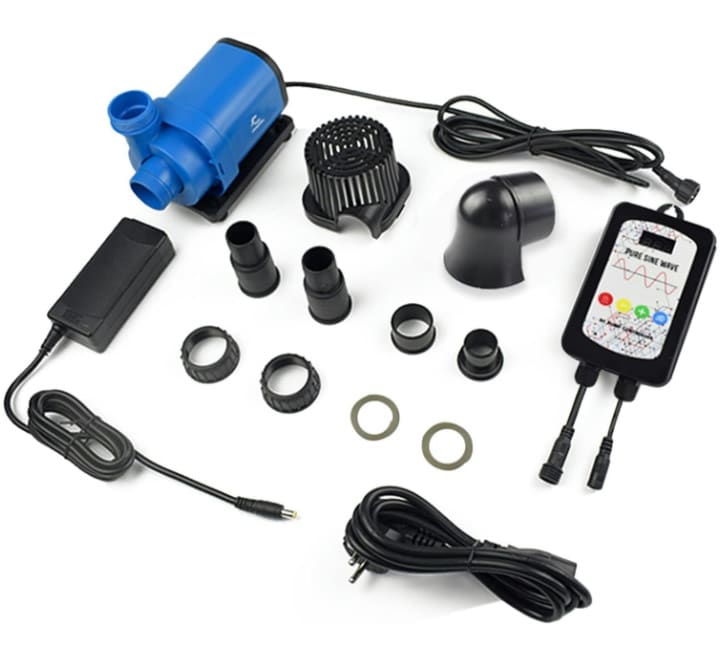

γPackage Contentγ
1ΓDC water pump
1ΓController
1ΓPower Source
1ΓWall Plug Cable
γAttentionγ
1.NOTE: The impeller need to be cleaned regularly. Please refer to the maintenance video and clean the pump rotor every month if the water is very dirty,
2.Please keep the power source dry and clean. Do not touch the power supply with wet hands.
γ Guaranteeγ
Lifetime technical guidance support! You are welcome to share your usage process with us at any time.
3-year warranty (free exchange)
