Rigorous and Meticulous Heat Treatment Technology to make sure the single Phase AC Speed Control Motor more durable and long life. In order to match speed control, you can choose a speed controller. The quicker motor run, the lower toruqe it output.
【Specification】
Brand: CHANCS

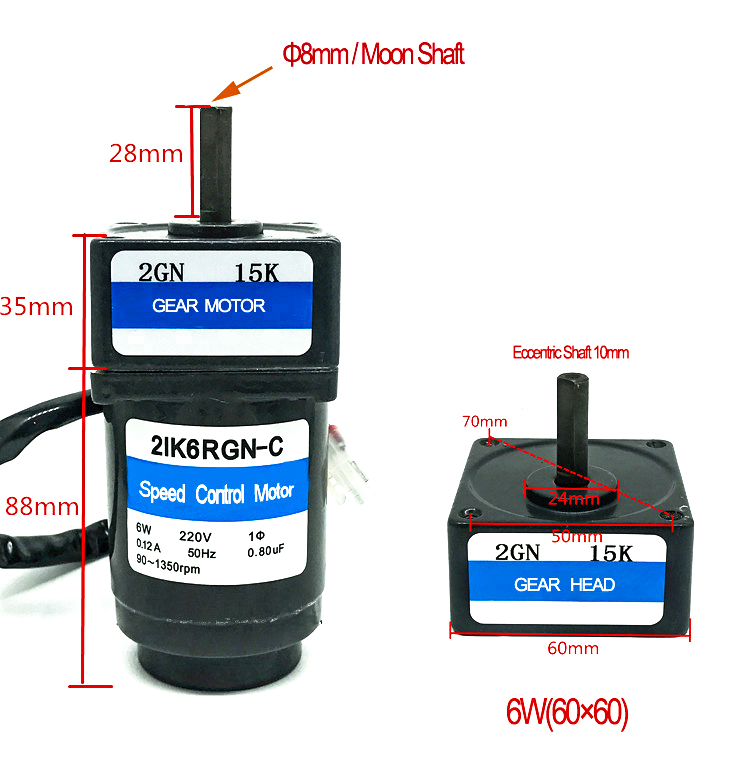

Model: AC Speed Control Motor

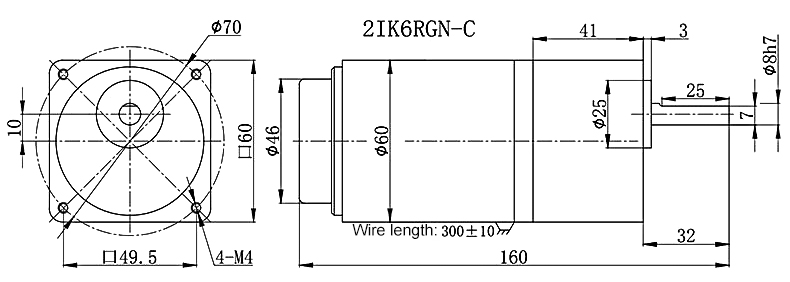

Size: 160*60*60mm (6.3″*2.36″*2.36″)
Voltage: AC 220V

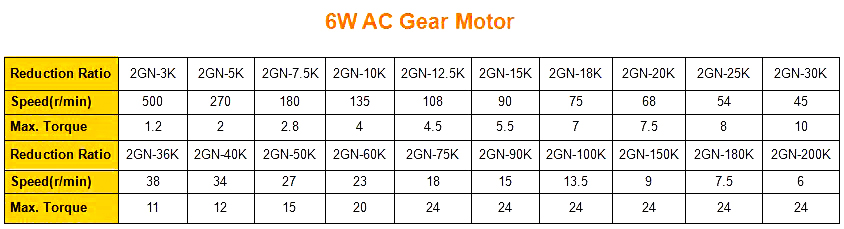

Speed: 6RPM,7.5RPM,9RPM,13/9/6RPM,15RPM,18RPM,20RPM,25RPM,30RPM,36RPM,40RPM,50RPM,60RPM,75RPM,90RPM,100RPM,135RPM,180RPM,270RPM,500RPM
【Application】
It can be used in conveying equipment,medical equiment,food machine,elevator,packing machine,automatic equipment and etc.
【composition】
Installation diagram of speed control motor, gearbox, governor,fixed bracket(Need to buy separately).
【Attention】
Case one: The speed controller shall not be lowered to 50% of the full speed when the load is small and the motor is not working continuously for a long time.
Case two: The speed controller shall not be lowered to 70% of the full speed when the load is high and the motor working continuously for a long time
1.Please do not reach the maximum torque during use, otherwise the gears may get stuck.
2.There is a slight discrepancy in measurements, please check before ordering!!
3.We can customize the motor you want,tell us the voltage and RPM.
【 Guarantee】
Lifetime technical guidance support! You are welcome to share your usage process with us at any time.
2 year warranty (free exchange)
